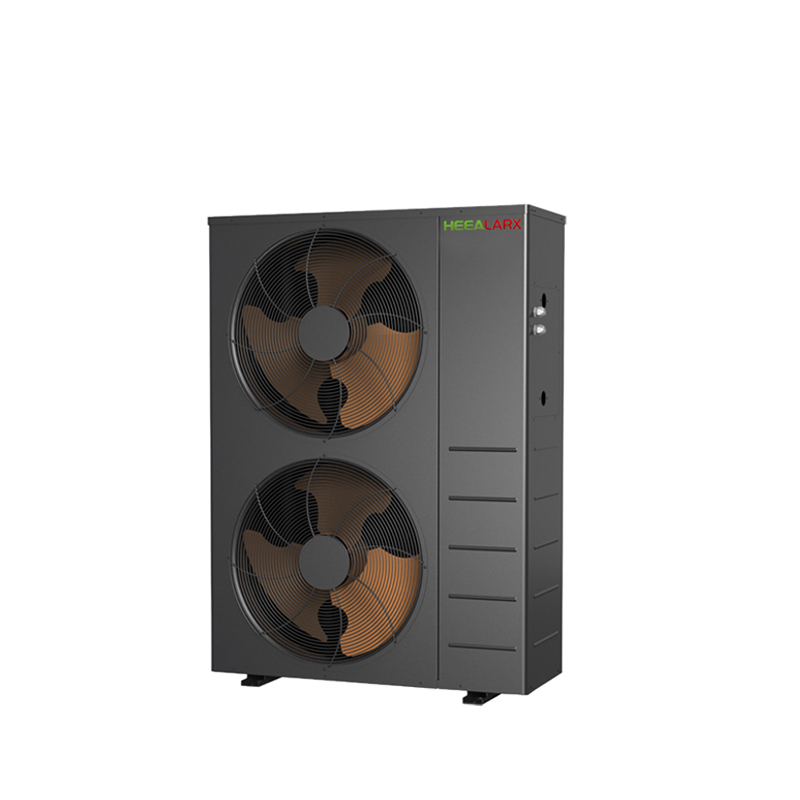

Full Dc Monoblock Inverter Heat Pump Suitable For Fan Coil

Monobloc type HEEALARX full inverter evi air to water house heating heat pump is a combination of all the modern elements, especially for European market, such as, Poland, Czech republic, Slovakia, Germany, Norway, Spain, France etc. Alfa Laval plate heater exchanger, eco-friendly R32 Refrigerant, full dc inverter technology, low noise technology, It runs well at the temperature of -25℃~35℃. It can be used for hot water heating, house heating and house cooling. The heat pump comes with components to ensure it works well, including a compressor,a DC fan, a controller and pressure sensors.modern appearance are just highlights of this type of monobloc type full inverter air water house heating heat pump with evi technology .


HEEALARX monobloc type full inverter house heating and cooling heat pump, developed with the idea in mind for maximum possible energy saving and maximum low noise level, creatively combines eco-friendly R32 refrigerant, full inverter technology and evi technology with modern design, providing powerful heating and cooling performance and modern elegant design in appearance. HEEALARX monobloc type full inverter house heating and cooling heat pump can provide luxurious house heating cooling solutions for both domestic and office buildings.

Why Choose HEEALARX Monobloc Inverter Air Source House Heating Heat Pump?

  • A+++ Energy Label

Full range of split type full inverter air to water heat pump with evi technology have passed erp tested in TUV lab, which can get A+++ Energy label for 35 centigrade water output.

Targeting the high end European market, our product of split type full inverter house heating and cooling heat pump can be rated A+++ energy label with full inverter evi technology and the excellent product structure and best quality components we are using. With top energy rating A+++, the unit is currently most energy efficient and cost saving for customers.


Brief Introduction

As to provide luxurious heating solution for swimming pool, HEEALARX full inverter swimming pool heat pump HEEALARX series has been thoroughly concepted and designed to meet the global need of luxurious full inverter swimming pool heat pump with character of super low noise level, high heating efficiency, new environment friendly gas of R32 , modern patented design and also digital touch control with WIFI.

产品详情配图_画板 1

  • EVI Technology

with the use of Dc inverter compressor and dc inverter controller,it can automatically increase the operating frequency according to the ambient temperature and greatly improve the heating capacity in low temperature environment.The evi technology with full inverter can ensure the maximum best performance of the heat pump unit during operating at cold ambient temperature as low as -25 centigrade and even -35 centigrade, which can help to offer the end users with stable comfortable house heating and hot water supply.


  • Mature full inverter technology:

After 8 years of research, designing and advancement by our international engineer team from Singapore and China, HEEALARX has fully mastered the secret of the mature full inverter technology and also it has applied to our product of split type full inverter house heating and cooling heat pump.


  • Best quality heat pump components

As to ensure the stable performance of the units, HEEALARX adopts best quality heat pump components such as: ALFA LAVAL Plate heater exchanger, WILO Inverter water pump made in EU, Panasonic R32 full inverter compressor and Panasonic inverter fan motor etc.


  • Super Low Noise Level Technology

with adoption of Panasonic full inverter evi compressor and dc inverter fan motor with changeable fan feed and also well insulation of whole piping and refrigerant system,so that the sound of the unit is controlled at a satisfactory level. The noise level of our heat pump system can reduce to 40-45 dB.


  • WIFI/APP Control

Through WIFI online monitoring, customers will enjoy our contactless support mode no matter where they are. Our split type/ Monoblock HEEALARX full inverter evi air to water home heating heat pump also has more intelligent protection functions.

  • R32 Gas

New gas of R32 environment friendly green gas is in use helps our HEEALARX inverter heat pumps operate more cleanly and effectively, which has less harmful effects on the atmosphere with lower carbon emissions and zero ozone depleting potential.


  • Smart Digital Touch Control

HEEALARX full inverter evi air to water monobloc type house heating heat heat pump has a high-end controller with digital colorful touch screen, which  is adopted to realize the linkage control between the heat pump unit and the terminal application end. It's one of the highlights of this trendy heat pump product. It is incredibly convenient for users from different countries that multi language function can be chosen.The WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.


  • Anti-freezing protection

Consisting of an indoor unit that blows air over evaporator coils and an outdoor unit that powers the system, split heat pumps have many advantages to offer homeowners. For example, the split model design can better avoid freezing problems. The system will implement automatic anti-freezing protection by detecting system water temperature.


  • Installation

HEELARX  monoblock full inverter air water heat pumps can provide heating, cooling and domestic hot water. Floor heating loops is used for space heating while fancoil unit can be used for space heating and cooling.
Domestic hot water is supplied from the domestic hot water tank connected to the heat pump.

Traditional Installation


Installation with Multi Functional Tank


Installation cases


Packing&deliver  ----polywood packing

微信图片_20230418105810 packing1


CE Approval

Full product range of HEEALARX split type full inverter evi air water house heating cooling heat pump have passed EMC/ LVD test and also got CE certified for Europe.


Our Company






Full Inverter Air Water House Heating Heat Pump Monobloc Type
Power Supply/220V-240V~50Hz/1Ph380V-420~50Hz/3Ph
Heating Condition-Ambient Temp.(DB/WB):7/6℃,Water Temp.(In/Out):40/45℃
Heating Capacity RangekW3.8~9.03.8~11.05.5~15.05.5~17.57.3~21.59.5~24.59.5~29.212.5~33.3
Heating Power Input RangekW0.89~2.480.89~3.061.31~4.111.31~4.851.73~5.912.26~6.692.26~8.112.98~9.22
Heating Condition-Ambient Temp.(DB/WB):7/6℃,Water Temp.(In/Out):30/35℃
Heating Capacity RangekW3.7~8.53.7~10.75.2~14.65.2~17.47.0~21.29.0~24.39.0~29.412.2~33.2
Heating Power Input RangekW0.67~1.910.67~2.400.94~3.280.94~3.951.27~4.751.60~5.491.60~6.612.20~7.53
Heating Condition-Ambient Temp.(DB/WB):-5/-6℃,Water Temp.(In/Out):36/41℃
Heating Capacity RangekW3.5~7.04.0~8.54.5~13.05.0~15.05.5~17.08.5~20.59.0~23.010.0~26.0
Heating Power Input RangekW0.91~2.331.06~2.851.17~4.301.30~5.981.40~5.452.16~6.832.23~7.592.47~8.38
Heating Condition-Ambient Temp.(DB/WB):-12/-13.5℃,Water Temp.(In/Out):36/41℃
Heating Capacity RangekW3.0~6.04.0~7.54.0~11.04.5~13.05.0~15.08.0~18.09.0~21.09.8~24.0
Heating Power Input RangekW1.11~2.451.50~3.061.45~4.401.65~5.301.79~5.882.88~7.203.27~8.473.54~9.64
Heating Condition-Ambient Temp.(DB/WB):-20/~℃,Water Temp.(In/Out):~/41℃
Heating Capacity RangekW2.5~5.03.0~6.03.8~9.54.3~11.04.7~12.57.5~15.09.0~18.09.5~21.0
Heating Power Input RangekW1.04~2.331.26~2.791.59~4.441.80~5.191.92~5.683.13~6.913.78~8.374.03~9.86
Cooling Condition-Ambient Temp.(DB/WB):35/24℃,Water Temp.(In/Out):12/7℃
Cooling Capacity RangekW2.3~6.52.3~8.03.2~11.03.2~13.04.5~15.05.5~18.05.5~21.07.6~24.0
Cooling Power Input RangekW0.65~2.450.65~3.040.90~4.100.90~4.961.25~5.681.52~6.671.52~7.922.15~8.99
ErP Level(35℃)/A+++A+++A+++A+++A+++A+++A+++A+++
Water Flow1.
Refrigerant/Proper InputkgR32/1.2kgR32/1.2kgR32/1.8kgR32/1.8kgR32/2.3kgR32/2.7kgR32/2.7kgR32/3.2kg
Sound Pressure At Rated Flow (1m)dB(A)4243454647495153
Sound Power LevelEN12102 (35℃)dB(A)5759606162646668
Cabinet Type/Galvanized sheet+ABS
Compressor Brand/Panasonic
Fan Motor Type/DC motor
Operating Ambient Temperature-35~43
Water Connectioninch111.
Unit Dimensions(L/W/H)mm896×440×750896×440×7501100×440×9501100×440×9501005×440×14001100×460×14401100×460×14401230×545×1525
Shipping Dimensions(L/W/H)mm990×450×900992×450×9001195×450×11001195×450×11001100×450×15501195×470×15901195×470×15901330×555×1680
The above data is for reference only;specific data is subject to the product nameplate.
