Split Inverter Evi Air Water House Heating Heat Pump 380V

1. A+++ Certified by TUV.

2. CE Approval.

3. House heating, cooling and domestic hot water supply.

4. Full range can be available both single phase and 3 phase.

5. Split full inverter air water heat pump adopts top grade parts such as: ALFA LAVAL plate heater exchanger, Wilo inverter water pump, Honeywell 3 way water valve and also Panasonic twin rotary inverter compressor.

6. Wide capacity range from 9kw to 22kw.

7. High temperature output to 65 Centigrade.

8. With Digital touch app control.

Availability:
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

Brief Introduction

Split type full inverter house heating and cooling heat pump consists of separate indoor unit and outdoor unit, developed with the idea in mind for maximum possible energy saving and maximum low noise level, creatively combines eco-friendly R32 refrigerant, full inverter technology and evi technology with modern design, providing powerful heating and cooling performance and modern elegant design in appearance. HEEALARX split type full inverter house heating and cooling heat pump can provide luxurious house heating cooling solutions for both domestic and office buildings.



产品详情配图_画板 1 副本


Advantage of HEEALARX Inverter Air Water House Heating Heat Pump Split Type

  • A+++ Energy Label

Targeting the high end European market, our product of split type full inverter house heating and cooling heat pump can be rated A+++ energy label with full inverter evi technology and the excellent product structure and best quality components we are using. With top energy rating A+++, the unit is currently most energy efficient and cost saving for customers.

4dd40359-5fc9-4afc-98cb-b6e6bf28b954

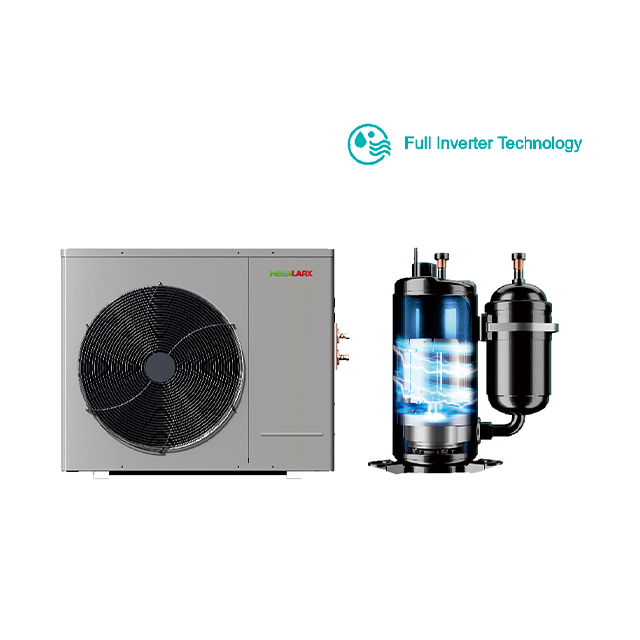

  • Mature full inverter technology:

After 8 years of research, designing and advancement by our international engineer team from Singapore and China, HEEALARX has fully mastered the secret of the mature full inverter technology and also it has applied to our product of split type full inverter house heating and cooling heat pump.

6f5e6d5d-3565-4509-bfdb-3fb2b70647df


  • EVI Technology

The evi technology with full inverter can ensure the maximum best performance of the heat pump unit during operating at cold ambient temperature as low as -25 centigrade and even -35 centigrade, which can help to offer the end users with stable comfortable house heating and hot water supply.

6c8155f5-eff5-4c11-8d07-22bc93deba5e


  • Super Low Noise Level Technology

with adoption of Panasonic full inverter evi compressor, dc inverter fan motor with changeable fan feed and also well insulation of whole piping and refrigerant system, and the noise level of our heat pump system can reduce to 38 dB.

未命名文件


  • Best quality heat pump components

As to ensure the stable performance of the units, HEEALARX adopts best quality heat pump components such as: ALFA LAVAL Plate heater exchanger, WILO Inverter water pump made in EU, Panasonic R32 full inverter compressor and Panasonic inverter fan motor etc.

922d649e-4eb3-45bc-9a51-e002ca055062


  • WIFI/APP Control

Digital touch control with WIFI, can control your heat pump anywhere with app on your smartphone.


  • R32 Gas

New gas of R32 environment friendly green gas is in use, 10%-20% more efficient than R410A and also low carbon consumption.

9aa9b7a1-9641-4c8e-97a1-d6a55635d6df


  • Smart Digital Touch Control

HEEALARX full inverter evi air to water split type house heating heat heat pump has a high-end controller with digital colorful touch screen, which is one of the highlights of this trendy heat pump product. It is incredibly convenient for users from different countries that multi language function can be chosen.

6075f4eb-2add-419b-81eb-7a0ca050b3f8

  • Installation

HEEALARX Full inverter evi air water house heating heat pump is designed for house heating, domestic hot water supply and cooling in low ambient air temperature of -25 centigrade to -35 centigrade.


Installation Sketch  for domestic hot water and house heating with buffer tank


Installation Sketch for house heating, domestic hot water and cooling with buffer tank




Full Inverter Air Water House Heating Heat Pump Split Type
Complete model
VS90-DCSVS120-DCSVS150-DCSVS180-DCSVS220-DCS
External model number
VS90-DCS-FWVS120-DCS-FWVS150-DCS-FWVS180-DCS-FWVS220-DCS-FW
Power Supply/380V～50Hz/3Ph
Heating Condition-Ambient Temp.(DB/WB):7/6℃，Water Temp.(In/Out):40/45℃
Heating Capacity RangekW3.8～9.03.8～11.05.5～15.05.5～17.57.3～21.5
Heating Power Input RangekW0.89～2.480.89～3.061.31～4.111.31～4.851.73～5.91
COP
4.25～3.634.25～3.64.20～3.654.20～3.614.22～3.64
Heating Condition-Ambient Temp.(DB/WB):7/6℃，Water Temp.(In/Out):30/35℃
Heating Capacity RangekW3.7～8.53.7～10.75.2～14.65.2～17.47.0～21.2
Heating Power Input RangekW0.67～1.910.67～2.400.94～3.280.94～3.951.27～4.75
COP
5.55～4.455.55～4.465.56～4.455.56～4.415.52～4.46
Heating Condition-Ambient Temp.(DB/WB):-5/-6℃，Water Temp.(In/Out):36/41℃
Heating Capacity RangekW3.5～7.04.0～8.54.5～13.05.0～15.05.5～17.0
Heating Power Input RangekW0.91～2.331.06～2.851.17～4.301.30～5.981.40～5.45
COP
3.80～3.003.78～2.983.85～3.023.83～3.013.95～3.12
Heating Condition-Ambient Temp.(DB/WB):-12/-13.5℃，Water Temp.(In/Out):36/41℃
Heating Capacity RangekW3.0～6.04.0～7.54.0～11.04.5～13.05.0～15.0
Heating Power Input RangekW1.11～2.451.50～3.061.45～4.401.65～5.301.79～5.88
COP
2.70～2.452.68～2.452.75～2.502.72～2.482.80～2.55
Heating Condition-Ambient Temp.(DB/WB):-20/～℃，Water Temp.(In/Out):～/41℃
Heating Capacity RangekW2.5～5.03.0～6.03.8～9.54.3～11.04.7～12.5
Heating Power Input RangekW1.04～2.331.26～2.791.59～4.441.80～5.191.92～5.68
COP
2.40～2.152.38～2.152.39～2.142.38～2.122.45～2.20
Cooling Condition-Ambient Temp.(DB/WB):35/24℃，Water Temp.(In/Out):12/7℃
Cooling Capacity RangekW2.3～6.52.3～8.03.2～11.03.2～13.04.5～15.0
Cooling Power Input RangekW0.65～2.450.65～3.040.90～4.100.90～4.961.25～5.68
EER
3.53～2.653.53～2.633.55～2.683.55～2.623.6～2.64
ErP Level（35℃）/A+++A+++A+++A+++A+++
SCOP（35℃）/4.814.824.824.804.81
Water Flowm³1.11.41.92.22.6
Refrigerant/Proper InputkgR32/1.2kgR32/1.2kgR32/1.8kgR32/1.8kgR32/2.3kg
Sound Pressure At Rated Flow (1m)dB(A)4243454647
Sound Power LevelEN12102 (35℃)dB(A)5759606162
Cabinet Type/Galvanized sheet+ABS
Compressor Brand/Panasonic
Fan Motor Type/DC motor
Operating Ambient Temperature℃-35～43
Water Connectioninch111.21.21.2
Refrigerant circuit
Liquid Dia(OD):φ9.52  / Gas Dia(OD):φ15.88
Net weightkg657090105115
Unit Dimensions(L/W/H)mm945×440×7501145×440×9501055×440×1400
Shipping Dimensions(L/W/H)mm990×450×9001195×450×11001100×450×1550
The above data is for reference only;specific data is subject to the product nameplate.
